Imperial ITG-24-E Electric Griddle (DISCONTINUED)

Imperial
CAS SKU
18957
MPN
ITG-24-E

Manufacturers 1 Year Parts and Labour Warranty

Electric

Discontinued

Product Specifications
Area914(W) x 610(D)mm
Power12 kW
Temperature Range50°C to 250°C
Voltage400V
WarrantyManufacturers 1 year parts & labour
Product Weight136 KG
Power Supply3 Phase - This unit requires a 3 phase electrical supply to be installed by a qualified electrician
Width (External)610mm
Height (External)356mm
Depth (External)787mm
Grill SurfaceFlat
Cooking SurfaceStainless Steel
Power TypeElectric
Packaged Width710mm
Packaged Height456mm
Packaged Depth887mm
Packaged Weight152 KG
Details

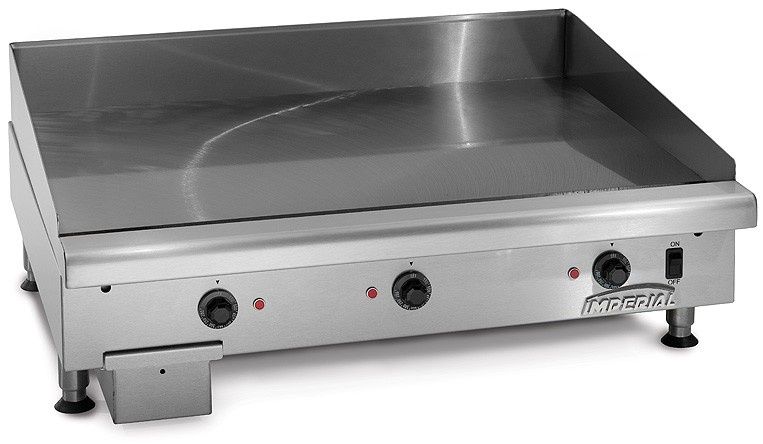

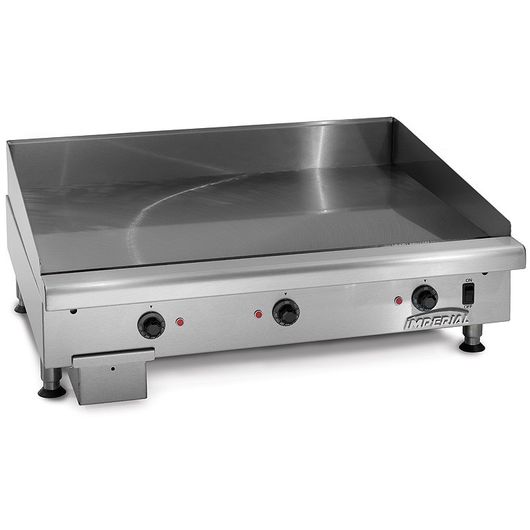

The Imperial ITG-24-E electric griddle is durable and has a thick cooking plate which recovers and maintains temperature quickly and efficiently. The ITG-24-E griddle features 4 adjustable legs for versatile placement.

Imperial ITG-24-E Features
  • Serpentine elements located under entire griddle surface
  • Stainless steel grease gutter is 4" wide and removes easily
  • Highly polished, thick griddle plate holds temperature and has a quick recovery
  • Stainless steel construction
  • Range match profile when placed on a refrigerated base or equipment stand
  • Stainless steel front, sides and rolled ledge
  • Dimensions: 356(H) x 610(W) x 787(D)mm
  • Power: 400V, 8kW, 10A - 3PH
  • Weight: 136 KG
  • Welded and polished stainless steel seams
  • 4" (102 mm) heavy duty legs with adjustable feet
  • Heating system
  • Thermostat maintains selected griddle temperature during peak cooking periods
  • Three 4 KW serpentine elements located under entire griddle plate
  • Maintains selected griddle temperature across griddle surface
  • Grease maintenance
  • 4" (102mm) stainless steel grease trough
  • One piece rolled front for easy cleaning
  • Large 3.8 litre, removable grease can
  • Weep hole in grease can to indicate when full
Documents
Downloads & Manuals:

Please click on a link below to download.

User Manual
PDF
Spec Sheet
PDF
