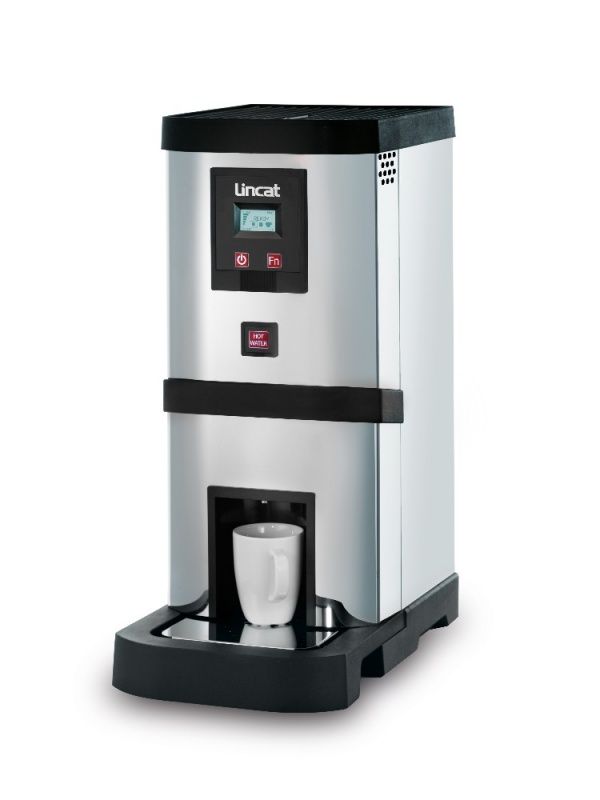

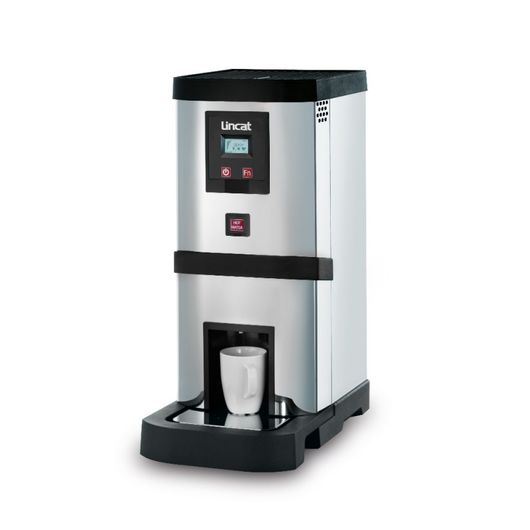

Lincat FilterFlow EB3F/PBM 9 Ltr Countertop Automatic Push Button Water Boiler (DISCONTINUED)

Approximate size diagram

CAS SKU: 18596
MPN: EB3F/PBM

13amp Plug In

Discontinued

Product Specifications

Capacity	9 Ltr
Height (External)	652mm
Width (External)	290mm
Depth (External)	465mm
Filtration	Yes
Output Per Hour	31 Ltr
Hot And Cold Water	No
Finish	Stainless Steel
Output Method	Push Button
Product Weight	13 KG
Immediate Draw Off	9 Ltr
Power Usage	3 kW
Electrical Power Supply	13 Amp Plug
Warranty	Manufacturers 2 years parts & labour

Details
Documents
FAQ

Details

The Lincat EB3F/PBM FilterFlow automatic water boiler features a unique built-in water filtration ensuring premium water quality and reduced scale build-up. With three programmable volumes, this unit is a safe and convenient push button dispenser model. The built-in filtration cartridge is recommended to be changed after approximately 4000 litres which is an easy-fit replacement.

Supplied with removable drip tray and water feed hose (1m).

Lincat EB3F/PBM Features

Unique built-in filtration ensures premium water quality & reduced scale build up
Filter life - approx 4000 Litres
Reduced limescale means higher energy efficiency & lower running costs
Low cost, easy-fit replacement filter cartridges
Lower maintenance & energy costs

Higher hourly output. Ideal even in busy establishments
Reliable electronic control system
Stylish contemporary design. Ideal for front-of-house
Advanced diagnostics with LCD panel showing operational status
WRAS Approved product
Method of dispense: push and release

Drip tray
Dimensions: 652(H) x 290(W) x 465(D)mm
Water feed hose
Output Per Hour: 31 litres - 205 cups
Rapid Draw Off: 9 litres - 60 cups
Boiling Time From Empty To Full Capacity: 26 mins

Documents

Downloads & Manuals:

Please click on a link below to download.

User Manual

Spec Sheet

FAQ

General

How often does the filter need to be changed?

The filter needs to be replaced every 6 months or after 5600 litres.

How long does it take to fill and heat up?

It takes on average 20 minutes to fill and heat up. Please allow a little extra for low water pressure.

How and when do I descale the unit?

our boiler will tell you when you need to descale. To do so simply open the blue lid on the top of the unit, pour the descasler in and follow the instructions on the screen.
