Details

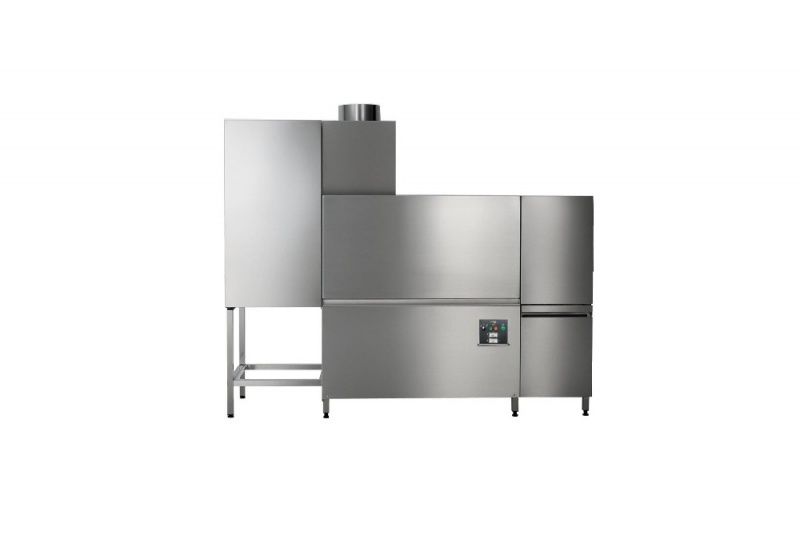

The Hobart Ecomax Plus C805EA is a Rack Conveyor Dishwasher with a powerful wash which gives you great results, it contains a large wash capacity which is ideally suited to higher volume operations. With Pre Wash.
Can be supplied either as left to right or right to left operation.

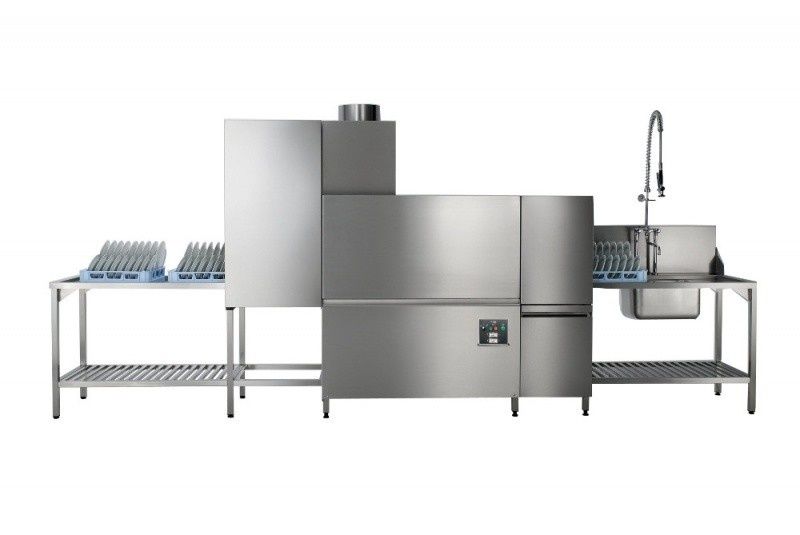

Draining rack, tabling and sink sold separately.
Hobart Ecomax Plus C805EA Features
- Wash upto 140 racks per hour (2,520 plates)
- Pre Wash system
- Stainless steel wash arms with anti-block jets
- Optional dryer and heat recovery available
- 500 x 500mm rack size
- Supplied with 1 x plate rack, 1 x cup rack and 1 x cutlery basket
- Rinse booster pump
- Continuous temperature display
- Full width strainer and soil basket
- Hot or cold feed
- Main wash plus dual rinse zones
- Double skinned with fully insulated door
- Thermostop control
- Class "A" air gap
- Electric: 26.8kw water feed @ 40°C, 35.8kw water feed @ 10°C - 400/50/3
- Max plates per rack: 18
- Electronic controls
- Rinse water consumption: 240ltrs/hr
- Wash tank capacity: 105ltrs
- Wash tank heating: 12kw
- Wash pump rating: 1.5kw
- Wash pump flow rate: 350ltrs/min
- Pre wash pump rating: 0.27kw
- Pre wash pump flow rate: 20ltrs/min
- Pre wash tank capacity: 10L
- Pre wash tank operating temp: 40-50°C
- Noise level: 64db
- Optional dryer
- Drying tunnel length: 650mm
- Drying tunnel loading: 3.5kw
- Optional heat recovery
- Circulation: 800m3/hr
- Reduction in kw loading: 6kw
- Water flow pressure: 1.5-6 bar
- Drain size (diameter in inches): 50mm
- Max height above floor level: 185mm
- Height with doors open: 2049mm
- Useable was chamber height: 440mm
- Autotimer
- Water connection: 22mm
- Required water flow: 15ltrs/min
- Amps required: 50
