Instanta UCD47 Instanta UCD47
Brand Instanta
Category Under Counter Water Dispensers
Availability In Stock
MPN UCD47
Cups Per Hour 168 or 378
Height (External) 560mm
Width (External) 465mm
Depth (External) 500mm
Weight 25.3 KG
Capacity 47 ltr
Finish Stainless Steel
Power Supply Hardwired - This unit requires a hardwired electrical supply to be installed by a qualified electrician
Power 4.5KW or 6.7KW
Finance Availability Available
Warranty Manufacturers 2 year parts and labour
Output Per Hour 42 Litres or 63 Litres
Packaged Width 600mm
Packaged Height 1045mm
Packaged Depth 590mm
Packaged Weight 37.4 KG

Instanta

Instanta UCD47 47 Litre Under Counter Hot Water Dispenser

The Instanta UCD47 Under Counter hot water dispenser/boiler has a 47 litre capacity. It has a heat up from cold of 63 minutes and a rapid draw off capacity when full of 47 litres (280 cups) of piping hot water and an hourly output of 252 cups, equivalent to 42 litres. Ideal for customers who demand quality and reliability at a very good price.

Manufacturers 2 Years Parts and Labour Warranty

This product is covered with a Manufacturers 2 Years Parts and Labour Warranty


inc. vatexc. vat
£1,590.00 Inc. VAT
£1,325.00 Exc. VAT
£1,325.00 Exc. VAT
£1,590.00 Inc. VAT
RRP:
£2,108.00
SAVE:
£783.00
 Delivery info

 In Stock

MPN: UCD47  |  SKU: 1023  |  GTIN: 0791689617275


Total Price:

Delivery Options (select during checkout)
  Cost: Service: Estimated Delivery Date: Service Expires In:
Van
Cost:
FREE
Service:
Order by 2pm for
2-4 Working Days Free Delivery
Estimated Delivery Date:
Wed 31st May to Fri 2nd June
Service Expires In:
Note: The above option(s) will be selectable during checkout for this product.
Product Options

Please select from the available options below:

Filter Kit For Water Areas Over 180ppm (Includes Filter, Filter Head & Two Hoses) CLARISSKIT Filter Kit For Water Areas Under 180ppm (Includes Filter, Filter Head, Two Adaptors & Two Hoses) 4HKIT Water Treatment & Filters (2 options available)
Filter Kit For Water Areas Over 180ppm (Includes Filter, Filter Head & Two Hoses) (CLARISSKIT)
£140.00 exc. VAT
£168.00 inc. VAT

Filter Kit For Water Areas Under 180ppm (Includes Filter, Filter Head, Two Adaptors & Two Hoses) (4HKIT)
£95.00 exc. VAT
£114.00 inc. VAT
Configuration (1 options available)
No image available
Power Requirements - UCD47/UCD47/L*:
Please
Select
Instanta UCD47 Description
  • Electronically controlled for constant temperature up to 95°C
  • Programmable measured water delivery
  • Early warning diagnostics with LCD read-out
  • Automatic re-circulating mode to prevent under temperature drinks
  • Energy saving mode 7 and 12 litre models
  • Five water level sensors (excludes UCD7)
  • Standard Model
  • Designed for direct connection to a potable cold water supply
  • Power: 4.5KW or 6.7KW - 30amp Hardwired
  • Weight: 25.3 KG (Dispenser)
  • Heat up time: 63 minutes (4.5kW)
  • Heat up time: 40 minutes (6.7kW)
  • Capacity: 47 litres
  • Rapid draw off in cups when full: 280
  • Dimensions: 560(H) x 465(W) x 500(D)mm

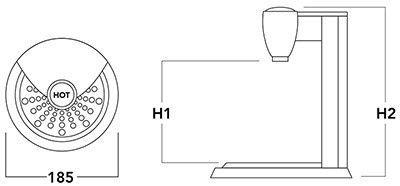

  • **Tap font: 185(Dia) x 150(H1) x 225(H2)mm**
  • Material: Stainless steel
  • Hourly Output: 42 litres / 168 cups (4.5kW)
  • Hourly Output: 63 litres / 378 cups (6.7kW)



Why should I buy the UCD47?

Efficient and practical hot water dispensers are essential to many professional caterers. Immediate access to hot beverages at or close to the point of sale brings many benefits. This attractive and solidly constructed under counter hot water dispenser from the respected UK manufacturer Instanta is an under counter unit, freeing up valuable counter top space for other appliances or enticing food display merchandisers.

It has a capacity of 47 litres with a heat up from cold of 63 minutes; the rapid draw off capacity is equivalent to 280 cups. The total hourly output of the unit is 42 litres of piping hot water, or 252 cups. With a rapid recovery rate of 0.7 litres per minute, hot water is always on tap! Instanta provide a comprehensive 2 year parts and labour warranty on this product.

Ideal for many catering businesses with this level of demand including travel centre franchises and fast service outlets, as well as hospitals, workplace canteens and offices, the competitively priced UCD47 from Instanta offers a high quality stainless steel design with built in reliability. The boiler is situated under the bar top or servery counter, with the stylish push button dispensing font located on its surface.

Under counter dispensers are compact and allow easy access to hot water for speedy beverage dispensing close to the point of sale. There is a choice of measured water delivery or an on demand setting.

The unit is easy to install and is designed to be plumbed into a potable cold water supply using the 1.5 metre and ¾” BSP food quality flexible hose supplied on delivery. The electrical power rating is a solid 4.5kW and the unit must be hardwired to the electricity supply. When in stand by, or idle mode the unit operates at an energy saving 0.12kW/hr.

Both the boiler unit, heating chamber and the dispensing font are constructed from high grade stainless steel for robustness, long life, good looks and ease of cleaning. The outer body of the under counter unit is brought to a polished, high sheen finish, while the dispensing font is finished with chrome plated aluminium. The unique design of the tank baffle plates increases energy efficiency and helps heat recovery; steam emissions are reduced for a cleaner atmosphere.

Hot water is electronically controlled and dispensed at a constant temperature from 80°C to 95°C; an automatic re-circulating mode means drinks are not dispensed under temperature. A useful feature is the LCD read-out of early warning diagnostics: there are 5 water level sensors. Over boil and boil dry safety protections are built in.

The external dimensions of this robust boiler are 560mm(h) x 465mm(w) x 500mm(d), while the attractive tap font has measurements of 185mm(dia) x 150mm(h1) x 225mm(h2). The appliance has a net weight when empty of 25.3 kilos, and 67 kilos when full; the packed weight for delivery is 37 kilos. The UCD47 is part of Instanta’s InstaTap range of boilers and dispensers with a wide choice of capacities, sizes and power ratings to suit every commercial catering business. This unit can be configured to a higher power rating of 6.75kW.


Downloads & Manuals:

Please click on a link below to download.

Spec Sheet
