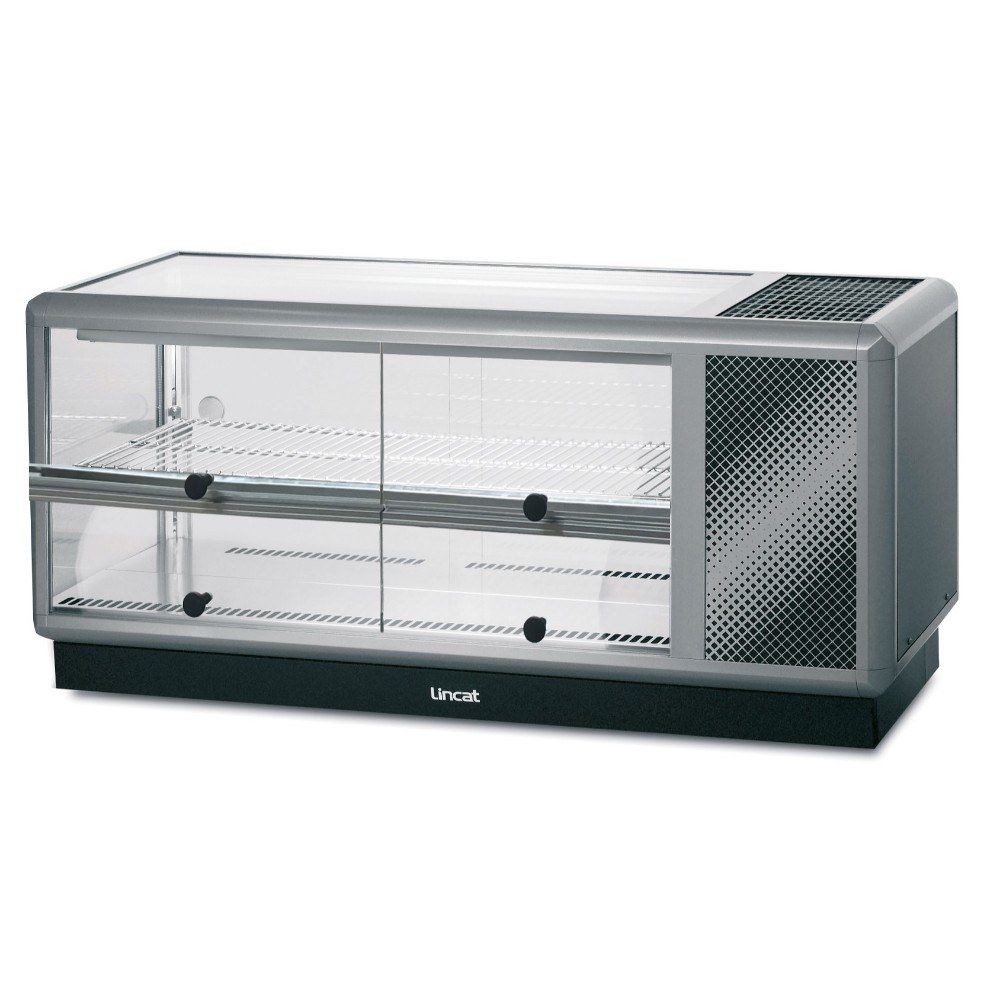

Lincat Seal 500 Series D5R/125S 142 Ltr Countertop Refrigerated Merchandiser (Self-Service) (DISCONTINUED)

Lincat
CAS SKU
1860
MPN
D5R/125S
AKA
GJ747

Manufacturers 2 Years Parts and Labour Warranty

13amp Plug In

Discontinued

Product Specifications
Capacity142 Ltr
RefrigerantR452a
Temperature Range3°C to 7°C
WarrantyManufacturers 2 years parts & labour
Product Weight86 KG
Power Supply13 Amp Plug In - This unit requires a 13amp plug socket to run
Max Ambient Temperature25°C
Width (External)1250mm
Height (External)575mm
Depth (External)500mm
FinishGlass
ServiceSelf Service
Packaged Width1400mm
Packaged Height890mm
Packaged Depth750mm
Packaged Weight96.1 KG
Details

Make maximum use of limited space with the Seal 500 Range Refrigerated Merchandiser's generous capacity. Perfect for cafes and small canteens, the spacious unit allows you to showcase sandwiches, baguettes, yoghurts, fruit and drinks. Using precise thermostatic control, this unit holds food from 3°C - 7°C. It enables the user to accurately monitor the temperature of the products in order to ensure perfect results. The self-service unit is double glazed which keeps the cool air locked in, which not only delivers fresher food to the customer, but also saves you money through energy efficiency.

Please note: This is not suitable for overnight storage.

As of January 2019, this unit uses refrigerant R452a (previously R404a).

Made in Britain

Lincat D5R/125S Features
  • Self service
  • Digital display which gives clear indication of temperature to the user
  • The unit is double glazed which keeps the cool air locked in, this in turn gives the customer better results while also saving money through energy efficiency
  • Spacious unit enabling you to showcase a wide variety of product
  • Using precise thermostatic control this unit holds food from 3°C - 7°C. It enables the user to accurately monitor the temperature of product for the absolute best results
  • Provides daylight balanced illumination, which lights up the units interior and spotlights each product
  • 1 shelf included with 1 shelf position
  • Internal dimensions: 362(H) x 910(W) x 424(D)mm
  • Dimensions: 575(H) x 1250(W) x 500(D)mm
  • Shelf dimensions: 650(W) x 375(D)mm
  • Refrigerant: R452a
  • Capacity: 142 litres
  • Temperature: 3 - 7°C
  • Maximum ambient temperature: 25°C
  • Power: 230V, 2.7A, 621W (13 amp plug fitted)
  • Net weight: 86 KG



Why should I buy the D5R/125S?

Part of the Seal 500 range of stylish, efficient and highly practical food display merchandisers, this medium-sized refrigerated cabinet from Lincat commercial catering equipment is perfect for caterers short on space; it takes up surprisingly little room on the sales or serving counter and will maximise the sales of your delicious cold snacks, treats or puddings. At just 500mm in depth and 1250mm width, the unit provides 142 litres of display room on 2 shelves. The unit is designed for self service use, with back service models also available.

The Seal 500 range includes heated as well as refrigerated merchandisers, so it’s possible to install a pleasing, eye catching display of both heated and refrigerated foods to make the most of sales potential and improve individual customer spend. In a word, the D5R/125S offers generous chilled display capacity from little counter space. The refrigeration power pack is side mounted - on the right hand from customers’ perspective. The rectangular front and sides are double glazed with toughened safety glass. The merchandiser will show off your chilled snacks, tasty desserts, gateaux and plated meals. The appetising display of the foodstuffs is enhanced through diffused internal lighting. The fluorescent light tubes are clip in and easy to change. Food is displayed on 2 shelves. The base of the chiller acts as the lower shelf and 1 rod shelf is supplied with the unit on purchase; shelves are chrome plated and there are adjustable shelf positions for the flexible display of differently sized food items. The shelf size is 900mm x 375mm.

The body of the unit is finished with a stylish silver powder coating on an extruded aluminium frame with, for durability, internal stainless steel grade 430 components. The base of the unit is a plinth of black plastic coated steel and it will sit comfortably on any level surface.

The temperature range is 3 to 7°C, the thermostatic temperature control has a clearly visible digital display with a high/low temperature warning. The unit will retain its temperature in quite hostile environments up to a maximum ambient temperature of 32°C and a relative humidity of 70% with fan cooled condensers and blown air circulation. A “hot gas” defrost is triggered automatically so service and sales time isn’t interfered with; importantly, there’s no loss of cabinet temperature. The double glazing provides extra insulation and lower running costs. The electrical power rating of this appliance is 621W and a 13A plug and supply cord are attached at the factory and supplied as standard.

Documents
Downloads & Manuals:

Please click on a link below to download.

User Manual
PDF
Spec Sheet
PDF
Brochure
PDF
FAQ
General
What is the recommended space to be left around a fridge for ventilation?
We recommend 5 inches all around.
