Smeg CW522D 500mm 18 Plate Double Basket Undercounter Dishwasher With Drain Pump (DISCONTINUED)

Smeg
CAS SKU
67551
MPN
CW522D

Manufacturers 1 Year Parts and Labour Warranty

Electric

Discontinued

Product Specifications
Power6 kW
WarrantyManufacturers 1 year parts & labour
Product Weight65 KG
Power Supply3 Phase - This unit requires a 3 phase electrical supply to be installed by a qualified electrician
Plate Capacity18
Width (External)600mm
Height (External)820mm
Depth (External)600mm
FinishStainless Steel
Basket Size500mm
Break TankYes
Integral Water SoftenerNo
Built In Drain PumpYes
External Rinse Boost PumpYes
Loading Height415mm
Number of Baskets2
Sound Level50 dB
Packaged Width660mm
Packaged Height902mm
Packaged Depth660mm
Packaged Weight72 KG
Details

The Smeg CW522D 500mm Dishwasher is a professional dishwasher that is designed to guarantee the best wash results with the lowest power consumption. With the capacity to simultaneously hold 2 x 500mm baskets per wash, this dishwasher makes the perfect addition to any kitchen. The upper basket is ideal for plates and saucers and can be positioned on 2 different heights, whilst the lower basket is suitable to wash glasses and cups. The double skinned door ensures thermo and acoustic insulation, right through to the pressed tank with rounded corners. The unit has 7 programs including a self-cleaning cycle and an ultra-clean pro cycle for complete sanitisation. The unit is manufactured from 304 graded stainless steel and features an electronic LED control panel that has a self-diagnosis system with fault warning.

Please Note: This unit comes as 3 phase as standard and can be converted to single phase 4.8kw or 2.8kw.

Smeg CW522D Features
  • Control type: Electronic
  • Rinse aid and Detergent dispenser: Peristaltic pump with electronic adjustment
  • Integral water softener: no
  • Wash system: Wash pump with 'Soft start' system
  • Rinse system: Atmospheric boiler and rinse pump (HTR system)
  • Double skinned tank with rounded corners
  • Balanced and insulated double skinned door with gasket
  • Thermo-acoustic insulation
  • Thermostop for controlling the rinse water temperature
  • Self-diagnosis system with fault warning
  • Insulated boiler
  • Filter positioning control system
  • Drain system through a drain pump and triple stage dynamic filter
  • ‘Stand-by’ function of the heating elements during periods of non-use
  • 2 x wash arms in AISI 304 stainless steel
  • 2 x rinse arms in AISI 304 stainless steel
  • Non-return valve on water supply
  • Self cleaning cycle available as standard
  • Automatic partial replacement of water in the wash tank by drain pump between wash and rinse cycle
  • Selectable: ULTRA CLEAN PRO cycle for complete sanitisation
  • Selectable: Crystals cycle with decreasing rinse temperature
  • Cycle automatically starts when closing the door/hood (optional)
  • Number of programs: 7
  • Baskets per hour: 120 / 80 / 48 / 30
  • Boiler capacity: 6L
  • Wash pump: 0.7kW
  • Wash tank capacity: 11L
  • Wash tank heating element: 0.8kW
  • Boiler heating element: 6kW 3ph / 2kW 1ph
  • Power supply: 400V 3N 50 Hz / 6.8kW - 230V 1N 50Hz
  • Useable loading height: 415mm

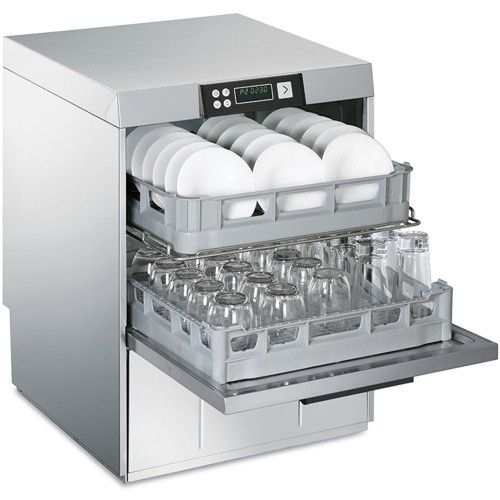

  • Upper basket: suitable for plates and saucers. Can be positioned on two different heights
  • Upper basket usable washing height: 145 / 225 mm
  • Lower basket: suitable to wash glasses and cups
  • Lower basket usable washing height: 190 / 110 mm
  • Dishwasher capable of washing two 500x500mm baskets simultaneously
  • Basket dimensions: 2 baskets 500x500mm
  • Dimensions: 820(H) x 600(W) x 600(D)mm
  • Weight: 65 KG
Documents
Downloads & Manuals:

Please click on a link below to download.

User Manual
PDF
Spec Sheet
PDF
Brochure
PDF
