| Brand | Classeq |
|---|---|
| Category | Pass Through Dishwashers |
| Availability | In Stock |
| MPN | P500AD-16 |
| Warranty | Manufacturers 1 year parts & labour |
| Weight | 130 KG |
| Power Supply | 3 Phase - This unit requires a 3 phase electrical supply to be installed by a qualified electrician |
| Plate Capacity | 18 |
| Width (External) | 630mm |
| Height (External) | 1520mm |
| Depth (External) | 720mm |
| Finish | Stainless Steel |
| Basket Size | 500mm |
| Break Tank | Yes |
| Integral Water Softener | No |
| Built In Drain Pump | Yes |
| External Rinse Boost Pump | Yes |
| Loading Height | 440mm |
| Sound Level | 70 dB |
| Packaged Width | 780mm |
| Packaged Height | 1450mm |
| Packaged Depth | 840mm |
| Packaged Weight | 140 KG |
| Detergent Pumps | Yes |
Buyers Guide:
Need help? Read our pass through dishwasher buyers' guide.

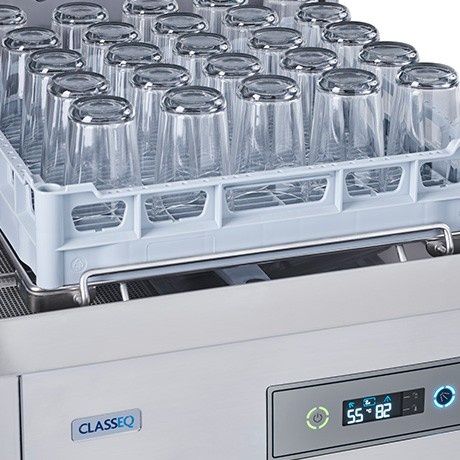

- Supplied with 1 x flat basket, 1 x plate insert & 1 x cutlery basket
- With added chemical pumps
- Best for 18-22 wash cycles an hour
- Standard (3 min), light (1.5 min) and intense (5 min) cycles allow for maximum output without compromising wash quality
- Simple two-button control for improved user experience
- Continuous hood clean system - Ensures the interior of the hood is hygienically clean at all times
- The P500A comes with a drain pump, rinse booster pump ensuring it meets all installation regulations and requirements
- All our pass through dishwashers have 'Type A' air gaps which completely prevents any dirty water from going back into the mains water supply (an essential and legal requirement)
- Amber Light (Flashing) - Machine is heating up
Green Light - Machine ready
Blue Light - Machine is in cycle
- Universally recognised symbols and logical controls make operating our machines crystal across all languages, meaning better results, less mistakes and minimal training required
- Easily removable components, a continuous hood clean system and an automatic self-drain and clean down program assists operators during regular cleaning
- 39 litre wash tank for efficient usage and minimal running costs

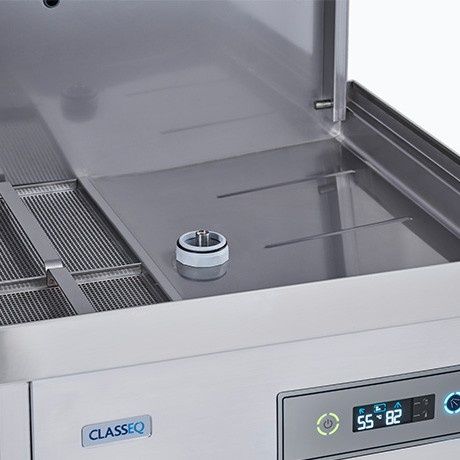

- Primary and secondary protective filter system - Allows for full coverage of the wash tank, preventing any food waste or objects from entering the wash tank water and clogging the machine up. As these filters are in two parts, they can easily be removed when cleaning the machine
- Cycle Times: 1.5/3/5
- Operating Noise Level: <70dB
- Net Weight: 130kg
- Operating voltage: 380-415V/3N~/50Hz
- Total Connected Load: 9.48kW
- Theoretical max racks/hour: 40
- Width: 630mm
- Depth: 720mm

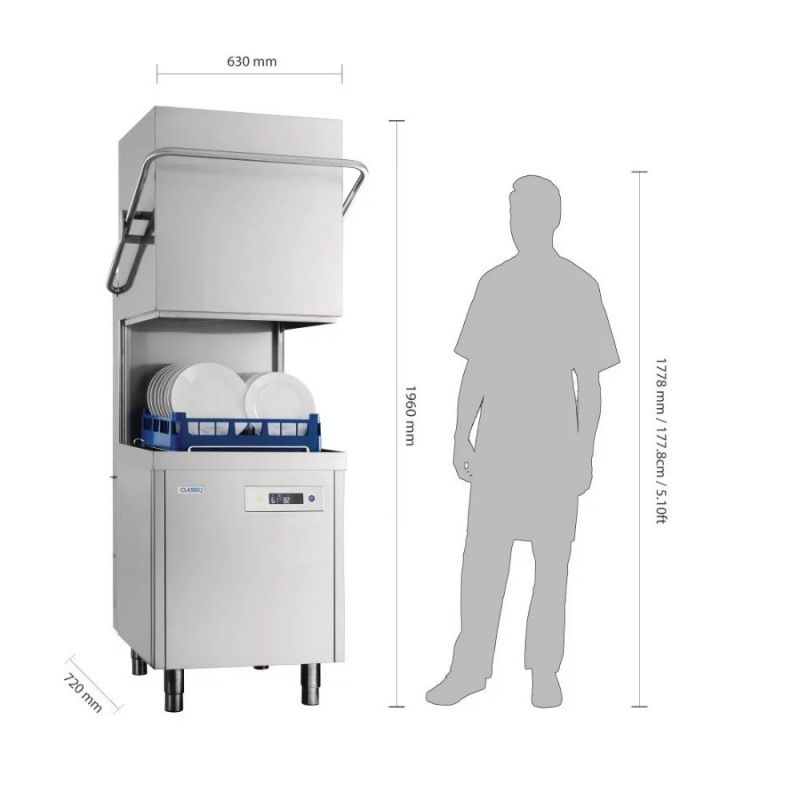

- Height - Hood Open: 1940-1990mm

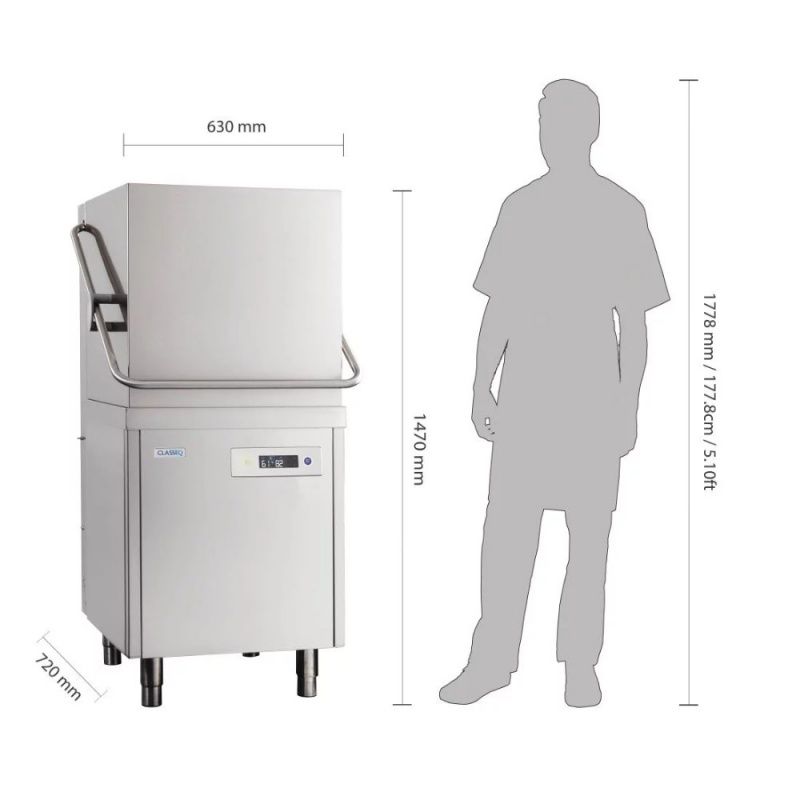

- Height - Hood Closed: 1470-1520mm
- Clear Entry Height: 440mm
- Drain Height from Floor Level: 0-700mm
- Water inlet height from floor level: 265-315mm
- Drain Size: ø40mm
- Rack Size: 500mm2
- Water supply connection: G3/4” (3/4” BSP)
- Required Water Flow Rate: 11L/min
- Minimum allowed supply water pressure: 2.0 bar
- Plates per Rack: 18
- Wash Tank Heating: 4.05kW
- Wash Tank Capacity: 39 Litres
- Rinse Water Consumption at 2 bar: 3.25 Litres/cycle
- Wash Tank Temperature: 55°C
- Wash Pump Capacity: 380 Litres/min
- Rinse Boiler Capacity: 7.5 Litres
- Rinse Boiler Temperature: 82°C
Why should I buy the P500AD-16?
This is a robust, powerful and economical pass through dishwasher that will give years of excellent service. Classeq are UK manufacturers with plenty of expertise in providing warewashing solutions for forward looking catering businesses: practical, durable machines that perform reliably and efficiently. This pass through dishwasher benefits from Classeq’s excellent 1 year parts and labour warranty.

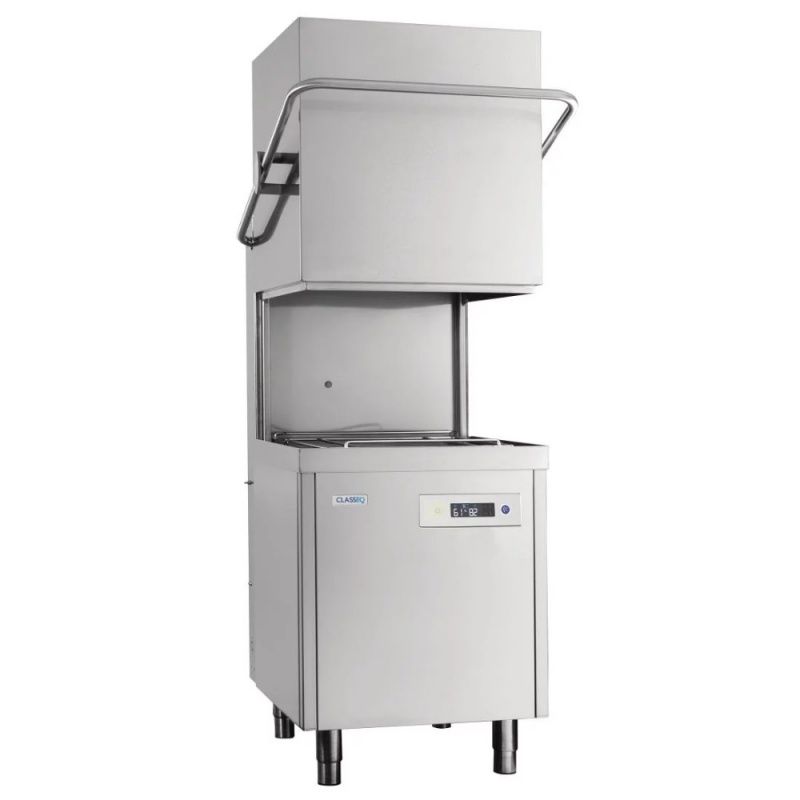

The P500A range of pass through dishwashers are simple to use and WRAS compliant. This unit, the P500AD-16 is fitted with an added chemical pump. It has a 500mm rack with a capacity of 18 plates - it will wash up to 40 racks - or 720 plates - per hour. This powerful dishwasher is best used on an intermediate basis for 18-22 wash cycles per hour - everyday use and intensive use models are also available for varying throughputs. This powerful dishwasher is designed for straight through or corner situated use.
This is an outstanding commercial appliance available at an excellent price. The dishwasher requires a 3 phase 13 amp electrical supply to be fitted by a qualified electrician; the total connected load is 9.48kW. Classeq machines are made in England and are WRAS approved with a type A air gap that ensures no dirty water goes back into the mains water supply. Mains water connection is via a ¾” BSP. This efficient dishwasher uses as little as 3.25 litres of water per rinse cycle for reduced energy and water bills.

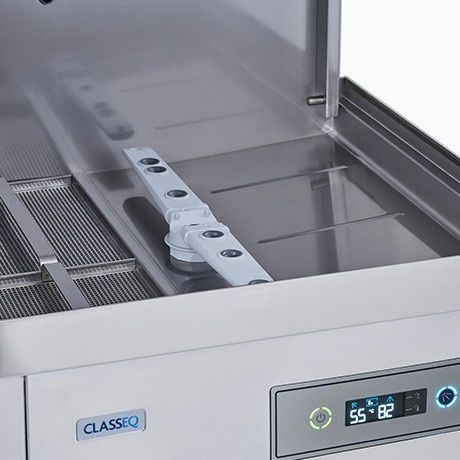

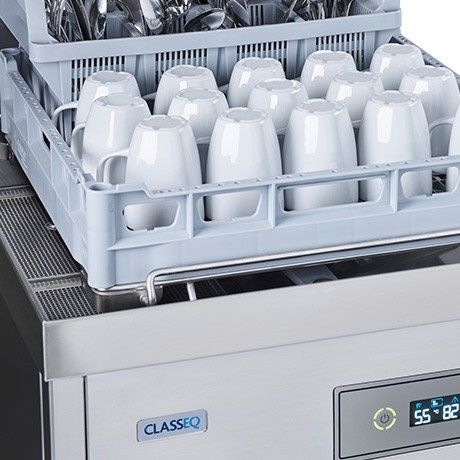

There are 3 wash programs with cycle times of 1.5 minutes, 3 minutes and 5 minutes. The wash tank has a capacity of 39 litres for reduced water consumption, efficient operation and minimal running costs. Features such as a continuous hood clean and removable wash arms ensure the machine is always easy to clean. The 2 button digital controls are simple to operate. A new and improved LCD display shows wash and rinse tank temperatures and the wash cycle program selection. A drain pump and rinse booster pump are standard. The machine operates at a noise level of under 70dB.

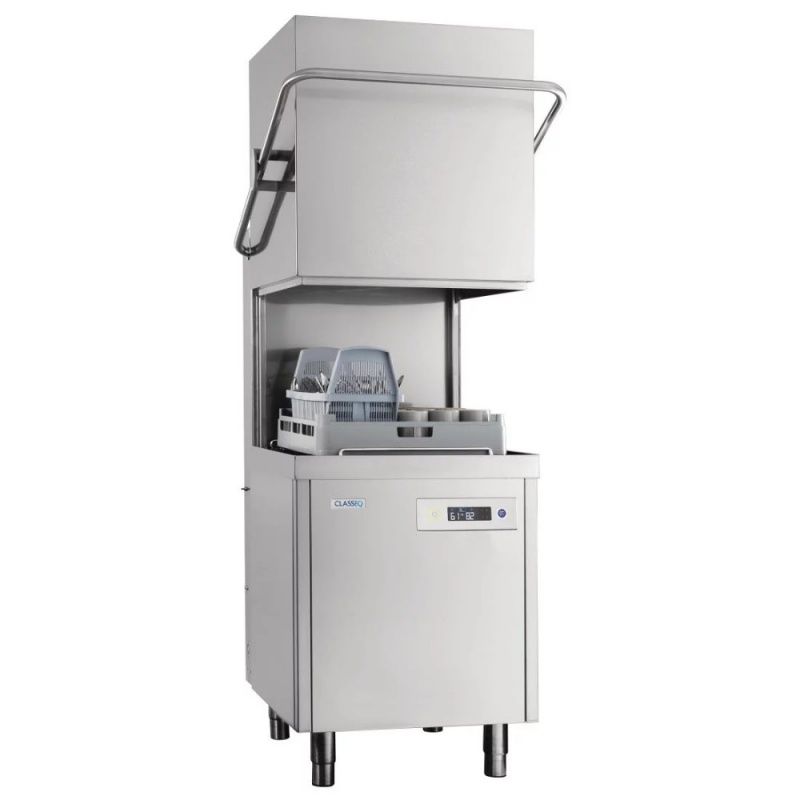

The Classeq P500AD-16 is a powerful yet economical pass through dishwasher, stainless steel built with high volume catering operations in mind for everyday use. The external dimensions of the dishwasher are 1890-1960mm(h) x 635mm(w) x 635mm(d). With the hood closed the height is 1470-1520mm. The machine has a net weight of 130 kilos. The basket size is 500mm x 500mm, which accepts 18 full size plates; the product is supplied with 1 x flat basket, 1 x plate insert and 1 x cutlery basket as standard. The basket guides are removable and extra baskets are available as accessories. The dual wash filter system prevents food waste or other objects entering the wash tank and clogging up the machine. The filters are in 2 sections and so they are easily removed for cleaning. The wash temperature is 55°C, with the rinse process programmed to 82°C for a sparkling, hygienic finish. A temperature interlock means the rinse cycle is always at the correct temperature.

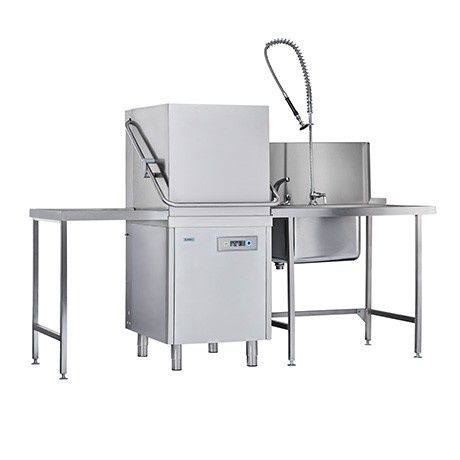

Water softeners for enhanced performance are available. To create the complete pass through operation in your kitchen, left and right hand exit and entry tables - with or without sinks - are available.
