Instanta Sureflow UCD47/L 47 Litre Under Counter Hot Water Dispenser (DISCONTINUED)

Instanta
CAS SKU
1022
MPN
UCD47/L

Manufacturers 2 Years Parts and Labour Warranty

Electric

Discontinued

Product Specifications
Power4.5KW or 6.7KW
WarrantyManufacturers 2 years parts & labour
Product Weight68 KG
Power SupplyHardwired - This unit requires a hardwired electrical supply to be installed by a qualified electrician
Width (External)465mm
Height (External)560mm
Depth (External)500mm
FinishStainless Steel
Output Per Hour42 Litres or 63 Litres
Cups Per Hour168 or 378
Packaged Width600mm
Packaged Height1045mm
Packaged Depth590mm
Packaged Weight37.4 KG
Details

The Instanta UCB47H (UCD47/L) Under Counter hot water dispenser/boiler has a 47 litre capacity. It has a heat up from cold of 63 minutes and a rapid draw off capacity when full of 47 litres (280 cups) of piping hot water and an hourly output of 252 cups, equivalent to 42 litres. Ideal for customers who demand quality and reliability at a very good price.

Instanta UCD47/L Features
  • WRAS approved
  • Electronically controlled for constant temperature up to 95°C
  • Programmable measured water delivery
  • Early warning diagnostics with LCD read-out
  • Automatic re-circulating mode to prevent under temperature drinks
  • Energy saving mode 7 and 12 litre models
  • Five water level sensors (excludes UCD7)
  • (L) Tall model
  • Designed for direct connection to a potable cold water supply
  • Power: 4.5KW or 6.7KW - 30amp Hardwired
  • Weight: 68 KG
  • Heat up time: 63 minutes (4.5kW)
  • Heat up time: 40 minutes (6.7kW)
  • Capacity: 47 litres
  • Rapid draw off in cups when full: 280
  • Dimensions: 560(H) x 465(W) x 500(D)mm

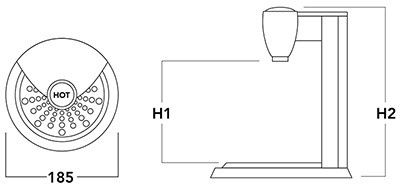

  • **Tap font: 185(Dia) x 150(H1) x 225(H2)mm**
  • Material: Stainless steel
  • Hourly Output: 42 litres / 168 cups (4.5kW)
  • Hourly Output: 63 litres / 378 cups (6.7kW)



Why should I buy the UCB47H?

This attractive and solidly constructed under counter hot water dispenser from the respected UK manufacturer Instanta has a capacity of 47 litres with an extremely fast heat up from cold of 40 minutes; the rapid draw off capacity is equivalent to 280 cups. The total hourly output of the unit is 63 litres of piping hot water, or 378 cups. With a rapid recovery rate of 1.2 litres per minute, you’re never going to run out of hot water.

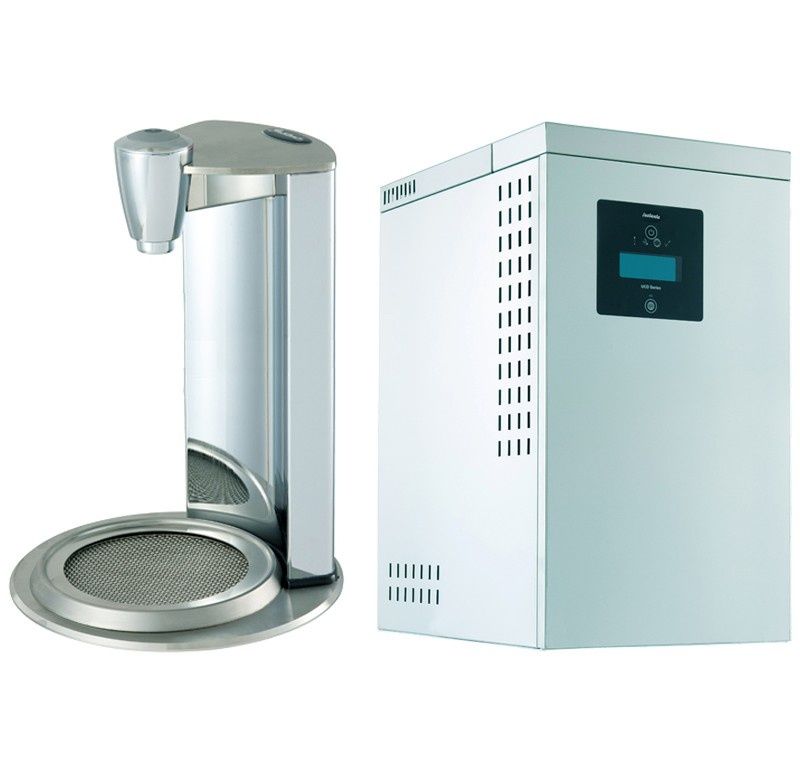

Ideal for many catering businesses with this level of demand including forecourt retailers and fast food outlets, as well as workplace canteens and offices, the competitively priced UCB47H from Instanta offers a high quality stainless steel design with built in reliability. The boiler is situated under the bar top or servery counter, with the stylish push button dispensing font located on its surface. This arrangement frees up servery space for other appliances or tempting food display merchandisers. Under counter dispensers are compact and allow easy access to hot water for speedy beverage dispensing close to the point of sale. There is a choice of measured water delivery or an on demand setting.

The unit is easy to install and is designed to be plumbed into a potable cold water supply using the 1.5 metre and ¾” BSP food quality flexible hose supplied on delivery. The electrical power rating is a powerful 6.7kW and the unit must be hardwired to the electricity supply by a qualified electrician. When in stand by, or idle mode the unit operates at an energy saving 0.12kW/hr, or not much more than a light bulb.

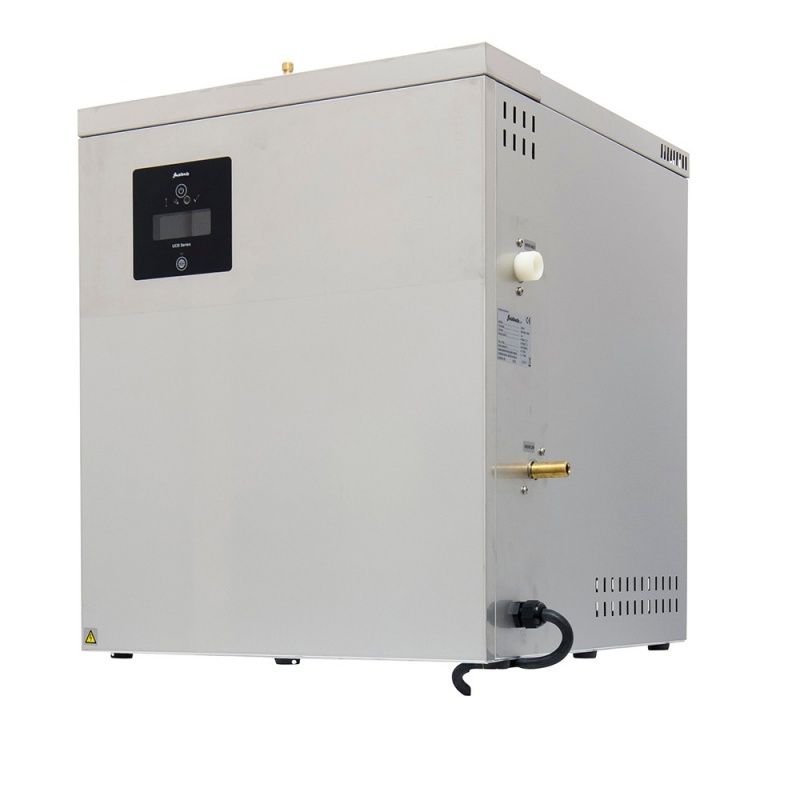

Both the boiler unit, heating chamber and the dispensing font are constructed from high grade stainless steel for robustness, long life, good looks and ease of cleaning. The outer body of the under counter unit is brought to a polished, high sheen finish, while the dispensing font is finished with chrome plated aluminium.

Hot water is electronically controlled and dispensed at a constant temperature of up to 95°C; an automatic re-circulating mode means drinks are not dispensed under temperature. A useful feature is the LCD read-out of early warning diagnostics: there are 5 water level sensors.

The external dimensions of this robust boiler are 560mm(h) x 465mm(w) x 500mm(d), while the attractive tap font has measurements of 185mm(dia) x 150mm(h1) x 225mm(h2). The appliance has a net weight when empty of 25.3 kilos, and 67 kilos when full; the packed weight for delivery is 37 kilos. The UCB47H is part of Instanta’s InstaTap range of boilers and dispensers with a wide choice of capacities, sizes and power ratings to suit every commercial catering business. This unit can be configured to a lower power rating of 4.5kW.

Highly functional, effortlessly practical and energy efficient this powerful unit from Instanta offers great value for money, together with the peace of mind brought by the excellent manufacturer’s warranty.



Product Accessories
Item DetailsStockPriceQuantityAction
4HKIT Filter Kit For Water Areas Under 180ppm (Includes Filter, Filter Head, Two Adaptors & Two Hoses)
4HKIT Filter Kit For Water Areas Under 180ppm (Includes Filter, Filter Head, Two Adaptors & Two Hoses) (4HKIT)
In Stock!
£86.99exc. VAT
£104.39inc. VAT
CLARISSKIT Small Filter Kit For Water Areas Over 180ppm (Includes Filter, Filter Head & Two Hoses)
CLARISSKIT Small Filter Kit For Water Areas Over 180ppm (Includes Filter, Filter Head & Two Hoses) (CLARISSKIT)
In Stock!
£114.99exc. VAT
£137.99inc. VAT
Documents
Downloads & Manuals:

Please click on a link below to download.

User Manual
PDF
Spec Sheet
PDF
